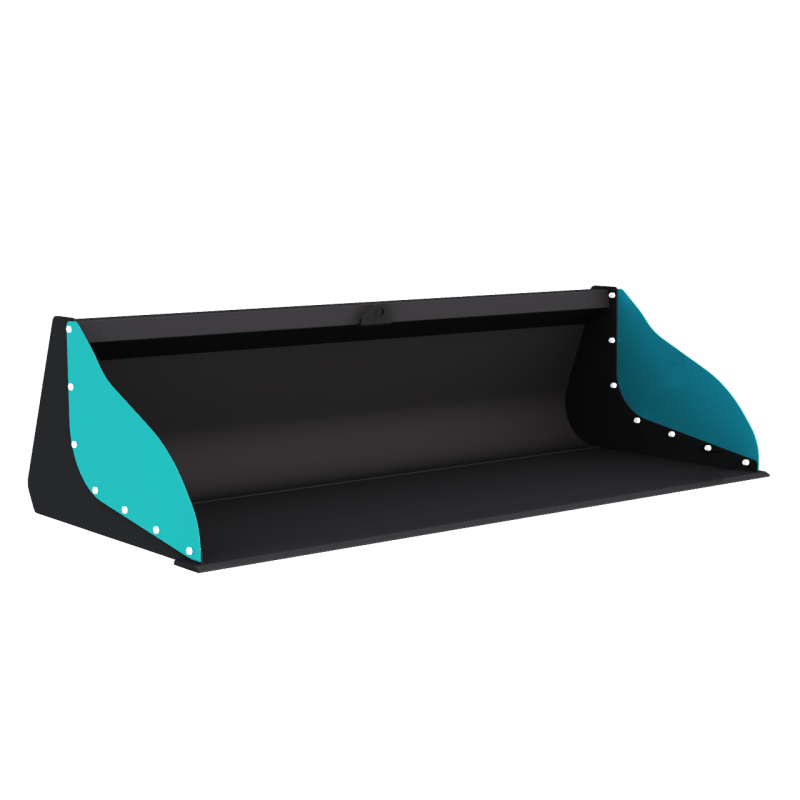

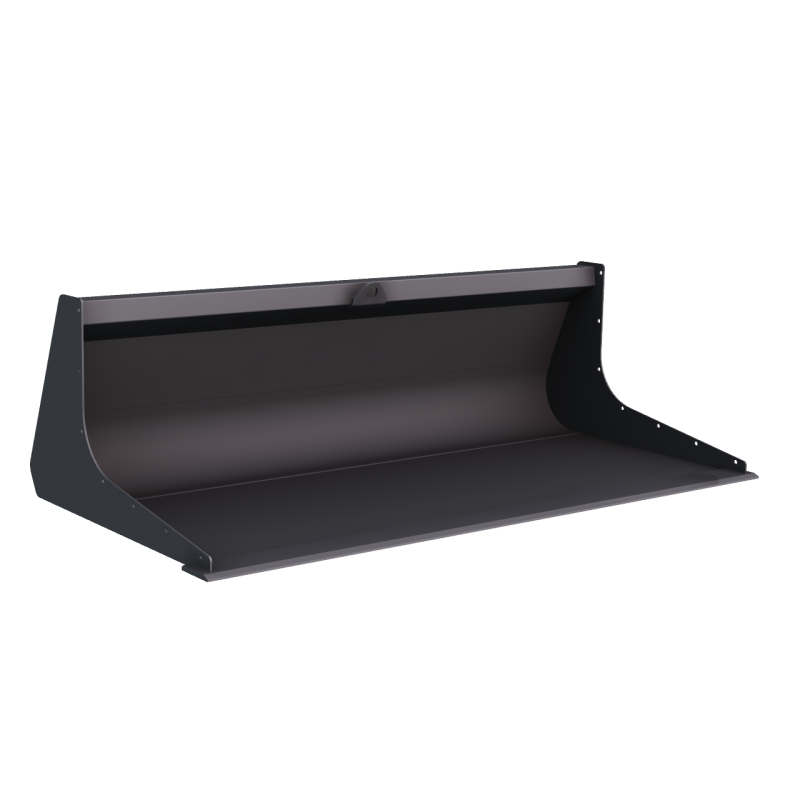

GM81 Bucket with removable sides

New product

Bucket with removable sides for tractors and loader with 40 hp to 70 hp

More details

  • No
  • Yes
  • No
  • Yes

Data sheet

Power range 40 hp - 70 hp
Material 1/8" & 3/16"
Cutting edge 4" x 1/2" 400 Brinell
Spill guard Optional
Running board on Skid Steer Yes
Lifting ring Yes
Level indicator Flat top
Bolt-on removable sides Yes
Length range (min-max) 43" - 75"
Volume range (cu.ft) (min-max) 10,3 - 17,8

More info

Grading bucket with removable sides for 40hp to 70 hp loaders and tractors

Construction with High Strength Steel: 1/8" material, 3/16" end plates

1/2" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

Bolt-on removable sides included

Bucket reinforcement

Flat top acts as level indicator

Lifting ring

Running board on skid steer attachment

Wear pads



Optional:

Double 1/2" cutting edge (400 Brinell hardness)

Spill guard



Made in Canada







Part # Length Volume (cu.ft) Depth Height Weight (lbs)
GM8143 43" 10,3 33" 20" 285
GM8151 51" 12,2 33" 20" 310
GM8159 59" 14,1 33" 20" 330
GM8167 67" 18,0 33" 20" 345
GM8175 75" 17,8 33" 20" 370

 Dimension, weight and volume are without attachment, indicative only and not contractual.
