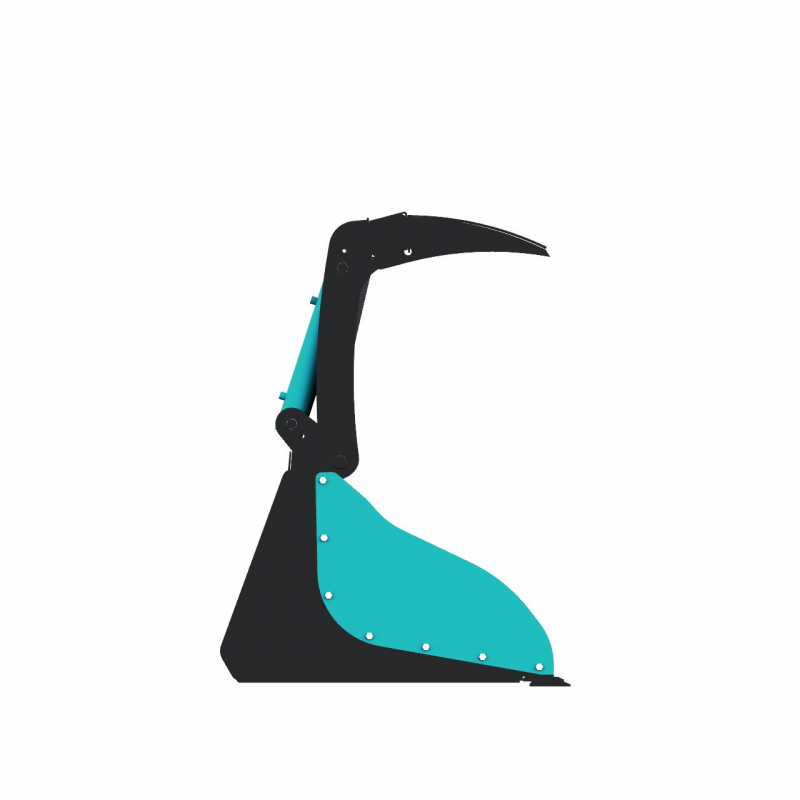

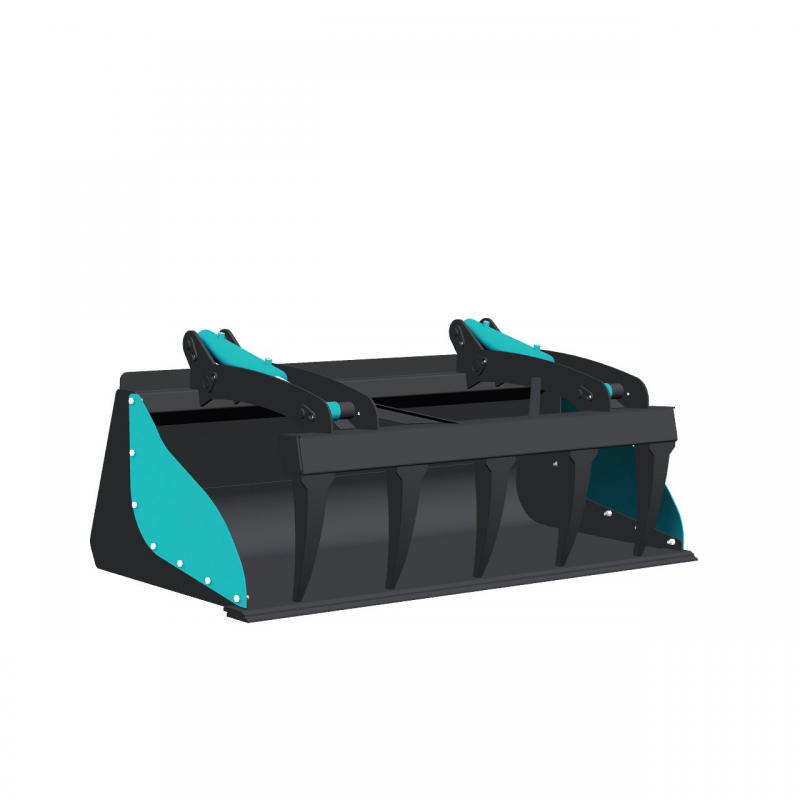

GM86 Bucket with multi purpose grab

Bucket with multi purpose grab for loaders and tractors with power range from 40 hp to 70 hp

Bucket set

Construction with High Strength Steel: 3/16" material, 3/16" end plates

1/2" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

Spill guard

Bucket reinforcement

Lifting ring

Wear pads

Grapple set

Maximum opening grapple for working against walls. In the open position, the grapple teeth remain behind the cutting edge.

42" opening

2 1/2" x 8" cylinder on the top

14" mechanically welded teeth

Wear bushing at the pivots

Optional:

Double 1/2" cutting edge (400 Brinell hardness)

Check valve

Bolt-on removable sides

Made in Canada

 Dimension, weight and volume are without attachment, indicative only and not contractual.
