> >>>GB12 Bucket with removable sides
GB1251 View larger
Previous Next

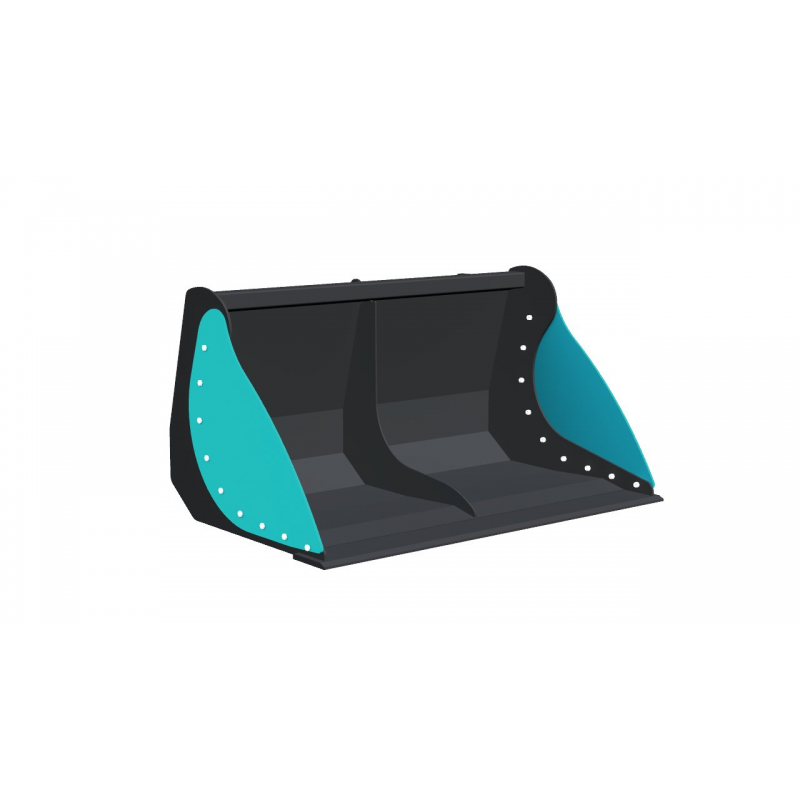

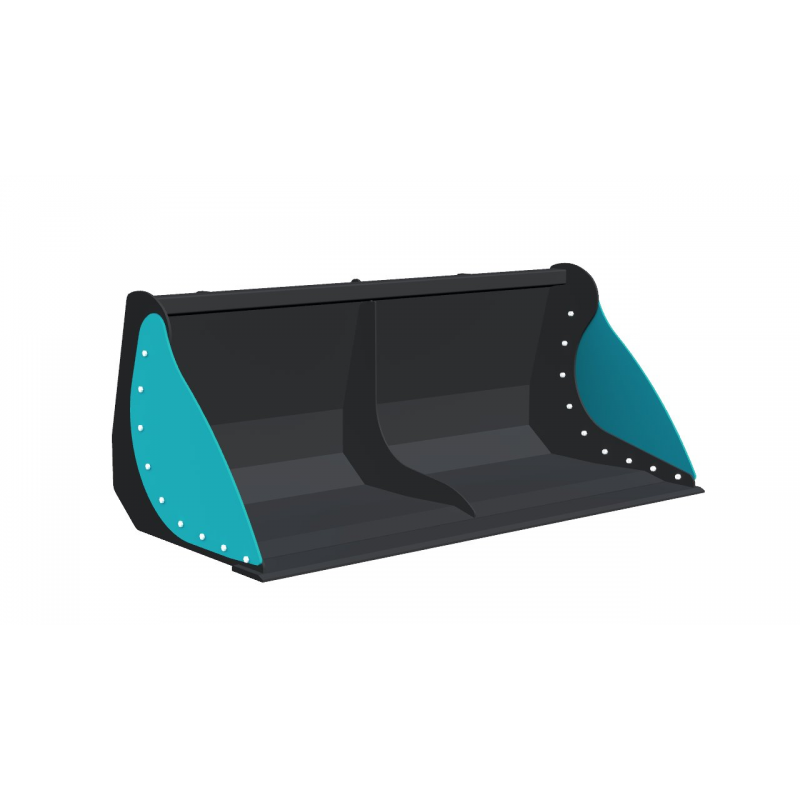

GB12 Bucket with removable sides

New product

Bucket with removable end plates for tractors and loader with power range from 80 hp to 130 hp

More details

  • No
  • Yes
  • No
  • Yes

Data sheet

Power range 80 hp - 130 hp
Material 3/16" & 1/4"
Cutting edge 5 7/8" x 5/8" 400 Brinell
Spill guard Optional
Running board on Skid Steer Yes
Lifting ring Yes
Level indicator Flat top
Bolt-on removable sides Yes
Length range (min-max) 51" - 91"
Volume range (cu.ft) (min-max) 17,0 - 30,1

More info

Bucket with removable sides for loaders, tractors and telehandler with power range from 80 hp to 130 hp

Construction with High Strength Steel: 3/16" material, 1/4" end plates

5/8" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

Bolt-on removable sides included

Central bucket reinforcement

Flat top acts as level indicator

Lifting ring

Running board on skid steer attachment

Wear pads



Optional:

Double 5/8" cutting edge (400 Brinell hardness)

Spill guard



Made in Canada







Part # Length Volume (cu.ft) Depth Height Weight (lbs)
GB1251 51" 17,0 33" 28" 495
GB1259 59" 19,6 33" 28" 515
GB1267 67" 22,2 33" 28" 545
GB1275 75" 24,8 33" 28" 580
GB1283 83" 27,5 33" 28" 670
GB1291 91" 30,1 33" 28" 705

 Dimension, weight and volume are without attachment, indicative only and not contractual.
