> >>>GB04 Bucket with multi purpose grab
GB0467 View larger
Previous Next

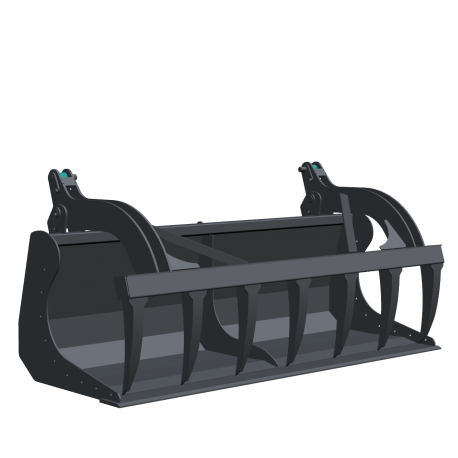

GB04 Bucket with multi purpose grab

New product

Bucket with multi purpose grapple for tractors and loader with power range from 80 hp to 130 hp

More details

  • No
  • Yes
  • No
  • Yes
  • No
  • Yes
  • No
  • Yes
  • No
  • Yes

Data sheet

Power range 80 hp - 130 hp
Material 3/16" & 1/4"
Cutting edge 5 7/8" x 5/8" 400 Brinell
Spill guard Optional
Lifting ring Yes
Grab tines Welded assembly
Bolt-on removable sides Optional
Check valve Optional
Pressure relief valve Optional
Length range (min-max) 67" - 91"

More info

Bucket with multi purpose grab for loaders and tractors with power range from 80 hp to 130 hp



Bucket set

Construction with High Strength Steel: 3/16" material, 1/4" end plates

5/8" cutting edge with 400 Brinell hardness (High Abrasion Resistant)

Bucket reinforcement

Lifting ring

Wear pads



Grapple set

Maximum opening grapple for working against walls. In the open position, the grapple teeth remain behind the cutting edge.

58" opening

2 3/4" x 10" cylinder on the top

17" mechanically welded teeth

Wear bushing at the pivots



Optional:

Double 5/8" cutting edge (400 Brinell hardness)

Spill guard

Check valve

Pressure relief valve

Bolt-on removable sides



Made in Canada







Part # Length Grab Tines Depth Height Weight (lbs)
GB0472 68" 6 39" 39" 860
GB0478 78" 6 39" 39" 895
GB0484 84" 7 39" 39" 1005
GB0490 90" 8 39" 39" 1075

 Dimension, weight and volume are without attachment, indicative only and not contractual.
